COPY

COPY is a special PostgreSQL command that can ingest a file directly into a specified database table. This allows for writing data faster than by using individual INSERT queries.

PgDog supports parsing the COPY command, splitting the input data stream automatically, and sending the rows to each shard in parallel.

Cross-shard queries

How it works

PgDog supports sharding data sent via COPY, using any one of the following formats:

Format Description Example
CSV Comma-separated values, an industry standard for sending data between systems. hello,world,1,2,3
Text PostgreSQL version of CSV, with <tab> (\t) as the delimiter. hello\tworld\t1\t2\t3
Binary PostgreSQL-specific format that encodes data using the format used to store it on disk.

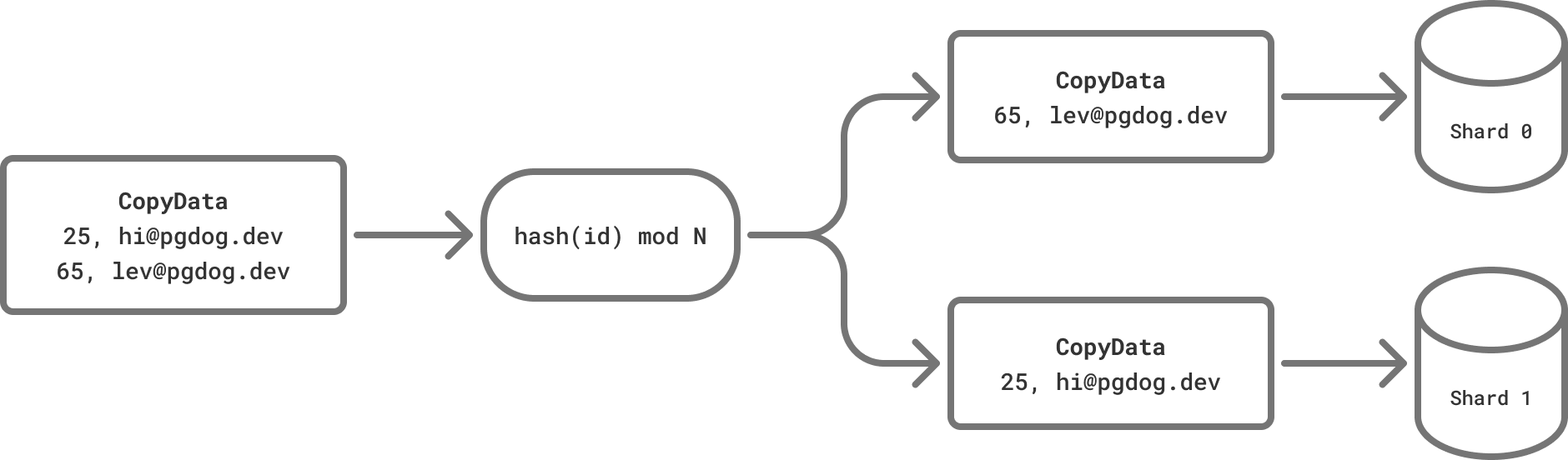

Each row is extracted from the data stream, inspected for the sharding key, and sent to a data node. The sharding key should be specified in the configuration and provided in the command statement, for example:

COPY users (id, email) FROM STDIN;

The columns should be specified in the statement, in the same order as they appear in the input data. If the data has headers (like some CSV files would, for example), they are sent to all shards. The query router doesn't use them to identify rows.

Performance

By using N nodes in a sharded database cluster, the performance of COPY increases by a factor of N. Data sent through COPY is ingested into the data nodes in parallel. This makes the performance of COPY as fast as the shards can write data to disk, and the network can send & receive messages.

The cost of parsing and sharding the CSV stream in PgDog is negligibly small.

COPY out

All COPY [...] TO STDOUT statements are treated as cross-shard and are executed on all shards concurrently. The rows are streamed directly, without buffering or sorting, which allows reading large amounts of data from all shards quickly.

PgDog doesn't currently support routing COPY statements based on its query. For example, the following statement will be sent to all shards even if it contains a sharding key:

COPY (SELECT * FROM users WHERE id IN ($1, $2, $3)) TO STDOUT;

If the query fetches rows from more than one shard, PgDog will also ignore any ORDER BY predicates and return rows in whatever order they arrive from the shards.
